The VorSpin Hydrocyclone Series: Hydrocyclone applications have a wide appeal to engineers and project managers in many industries because of their designed simplicity with no moving parts. The Fields of Industry applications are shown below:

  • Cement
  • Chemical
  • Clay
  • Environmental
  • Mineral Mining
  • Drilling
  • Refineries
  • Petrochemical
  • Dredging

Some specific applications: Sand and silt removal or separation, drilling fluids solids removal, catalyst removal and soil washing.

Hydrocyclones use the centrifugal separation principle to remove or classify suspended solids in a slurry.

The VorSpin Hydrocyclone features three improvements in hydrocyclone efficiency:

  1. A volute feed inlet
  2. A fluted Vortex Finder
  3. A non-plugging discharge Apex

The Volute feed inlet prevents the slurry from circulating back into the path of the incoming slurry, causing undesirable turbulence that reduces separation efficiency.

The Fluted Vortex Finder shape increases the momentum as the incoming slurry swirls around the increasing cross-sectional area, causing a more rapid separation of the suspended solids. This also prevents larger particles from “short circuiting” and reporting out the Vortex Finder with the liquid phase and smaller particles.

The Non-plugging discharge Apex has a non-circular orifice configuration with a central core and lobes surrounding the central core. As the solids report out the Apex discharge, the surrounding lobes will cause any central core plugging to wash through by producing a differential pressure region.

Please contact our sales team to learn more about our VorSpin Hydrocyclones and our Pilot Study Program.

Fig. 1 Illustrates the clean liquid overflow at
the top, the solids underflow at the bottom, and
the feed inlet at the center.

Fig. 2 Illustrates the fluted Vortex Finder.


VorSpin Hydrocyclone Brochures

Please click on the links below to access our VorSpin Hydrocylone Brochures:


Vorspin Hydrocyclone Brochure

To learn how our systems can lower your costs and improve the quality of your products, contact us for more information!



Please click on the corresponding links below to access a PDF file of our VorSpin Hydrocyclones Performance Charts.

Stainless Steel Models: Vorspin Hydrocyclone 304 S.S. Performance Chart

Urethane Models: Vorspin Hydrocyclone Urethane Performance Chart

VorSpin Hydrocyclones Photos

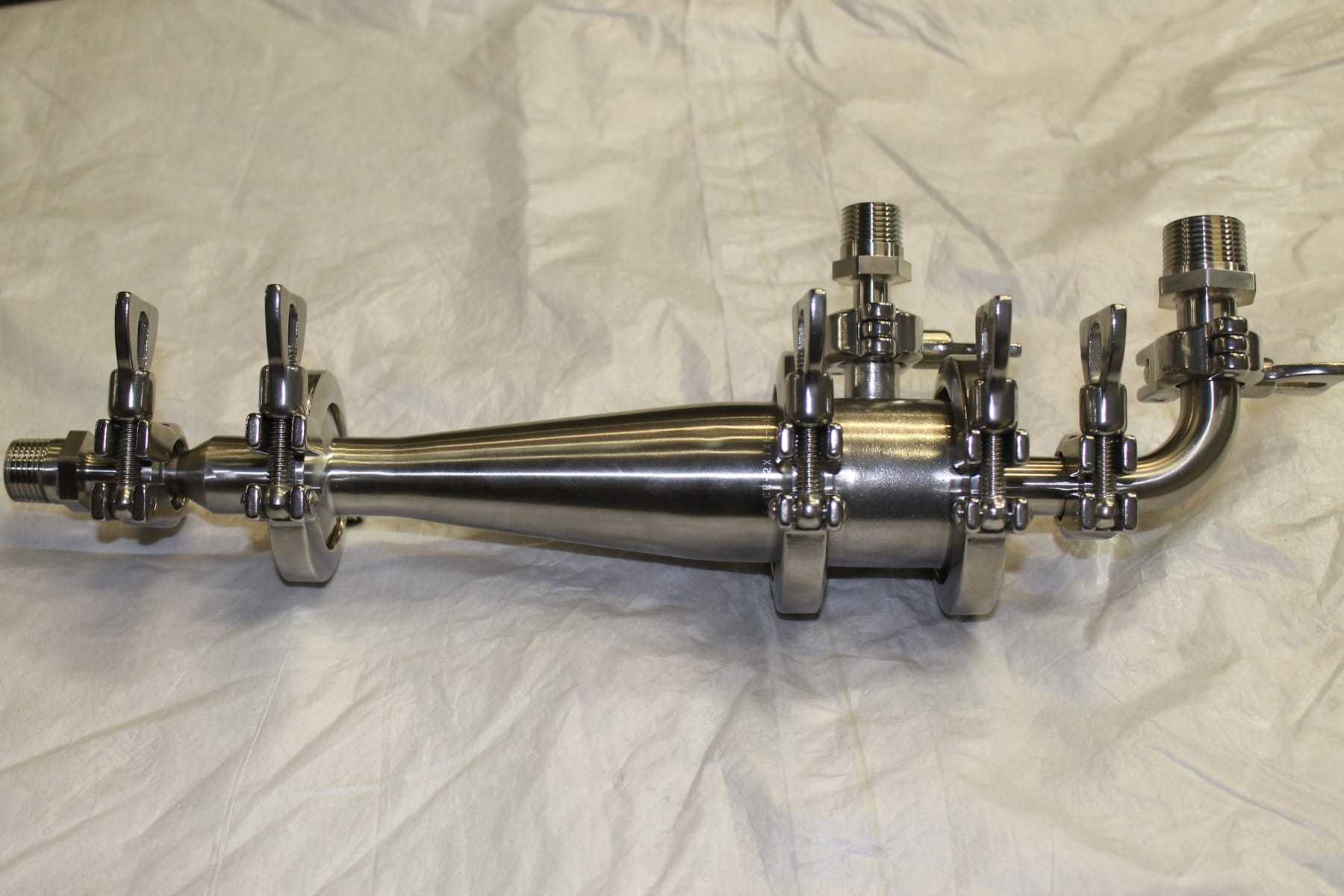

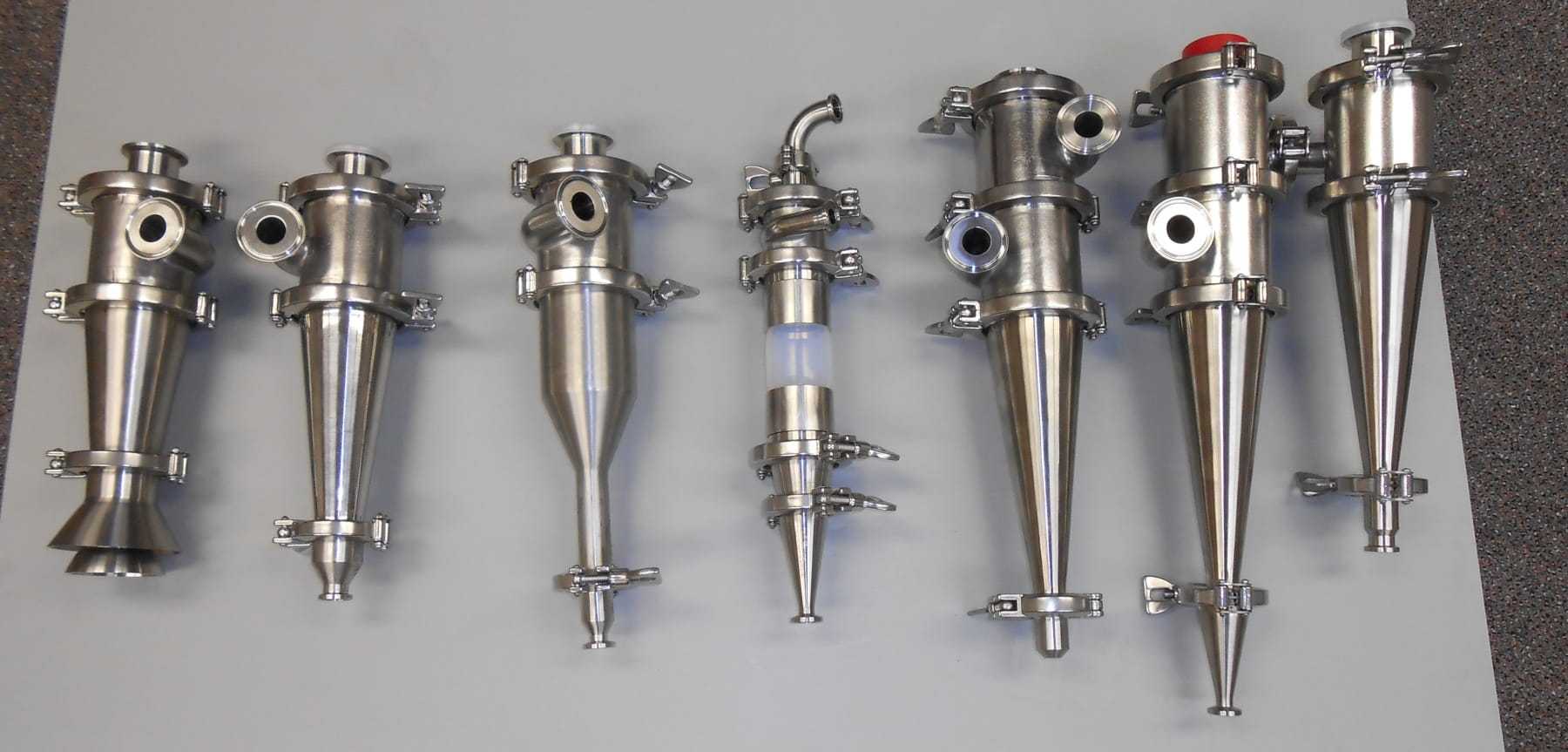

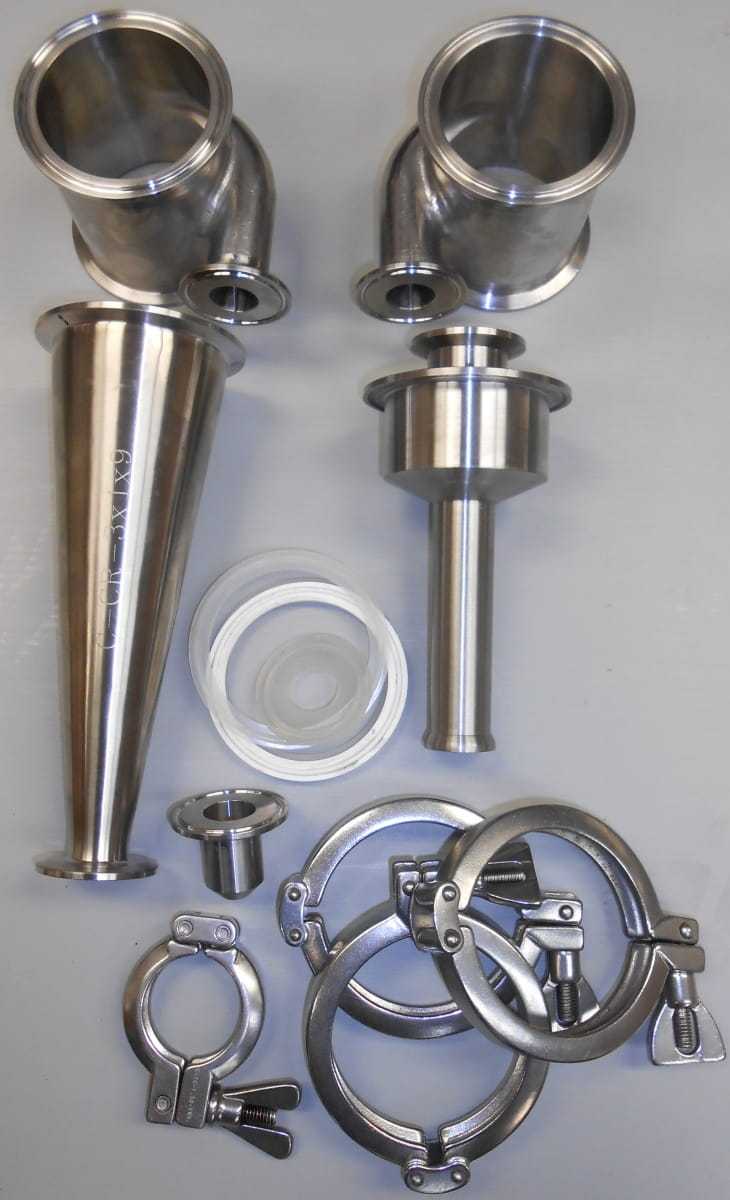

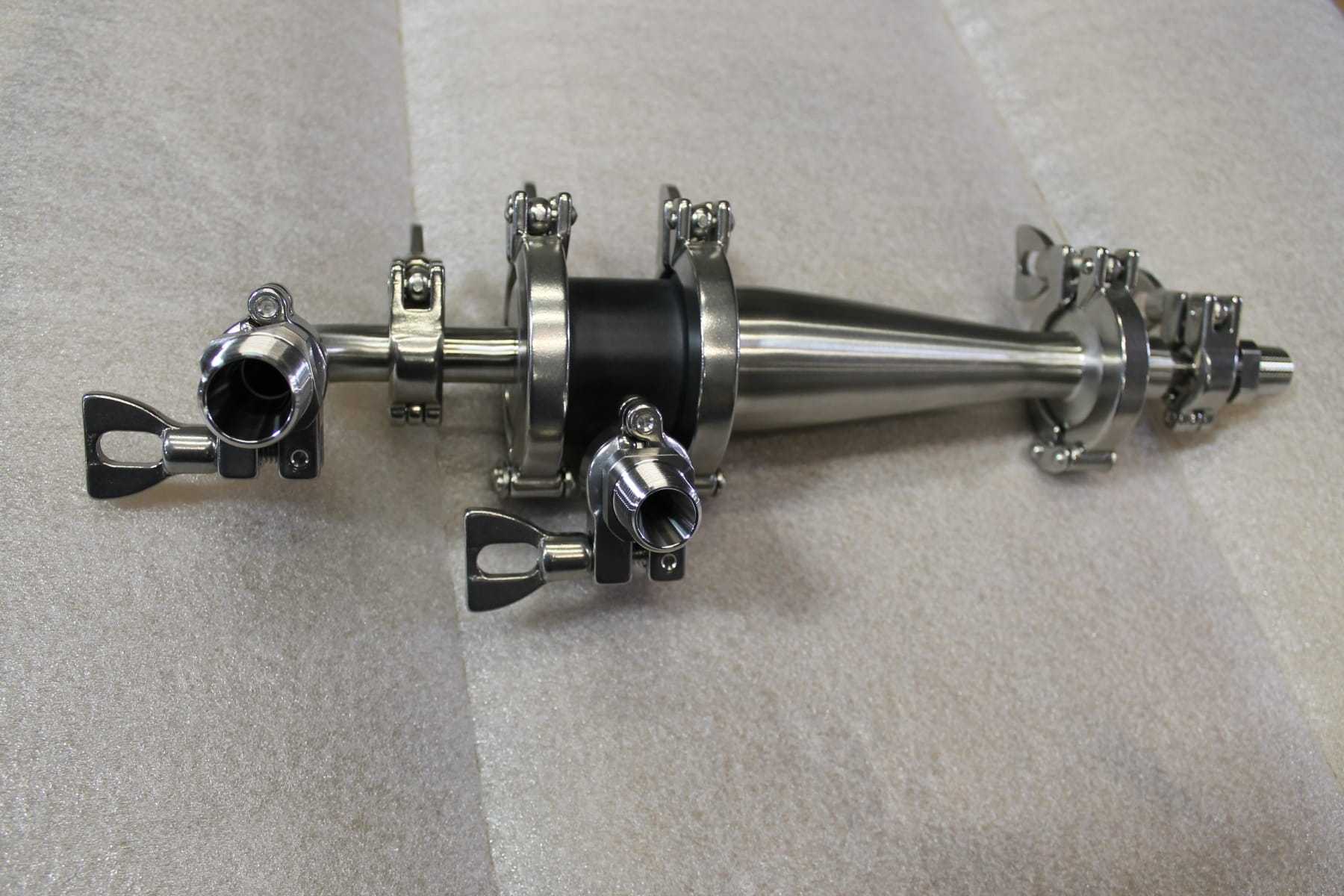

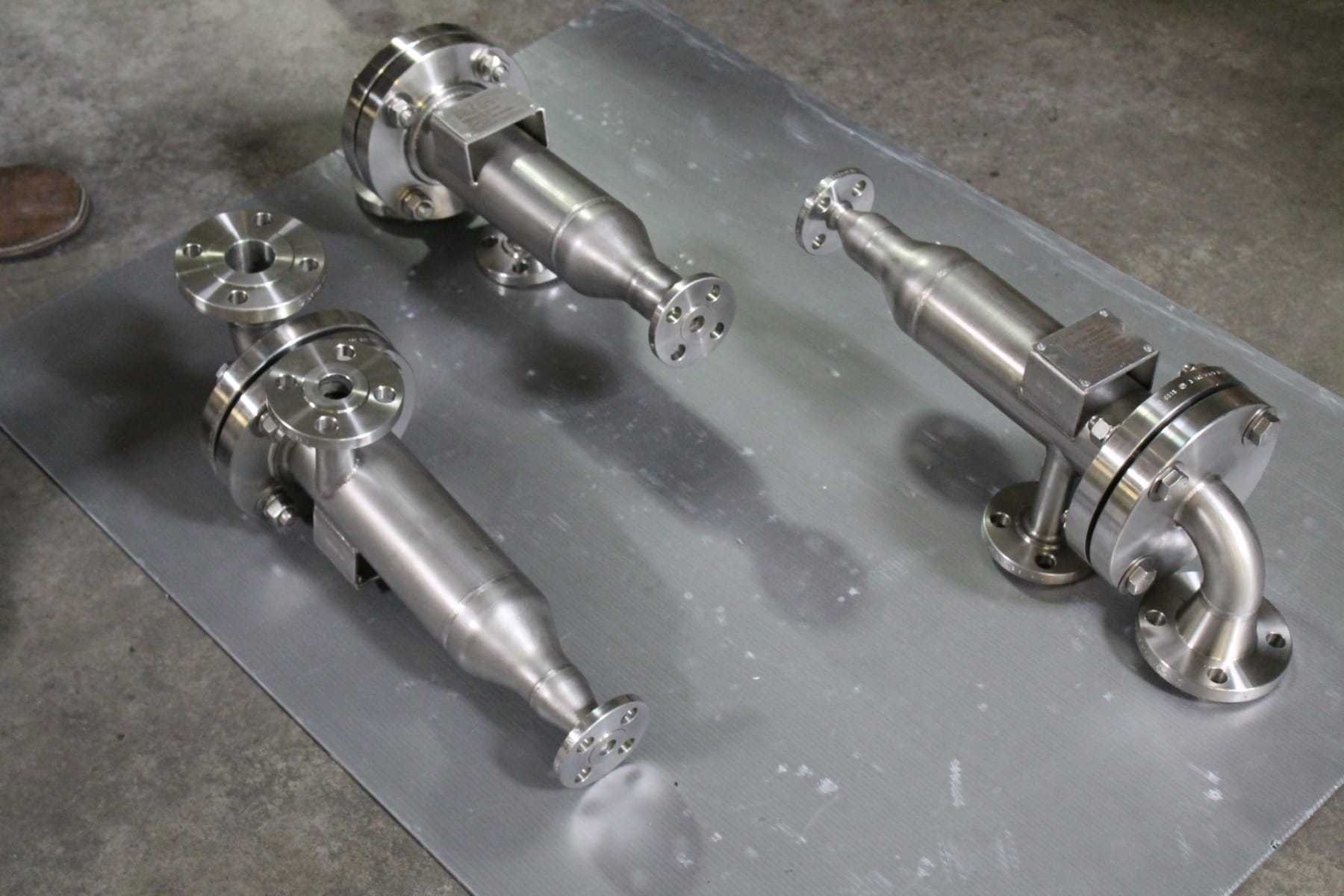

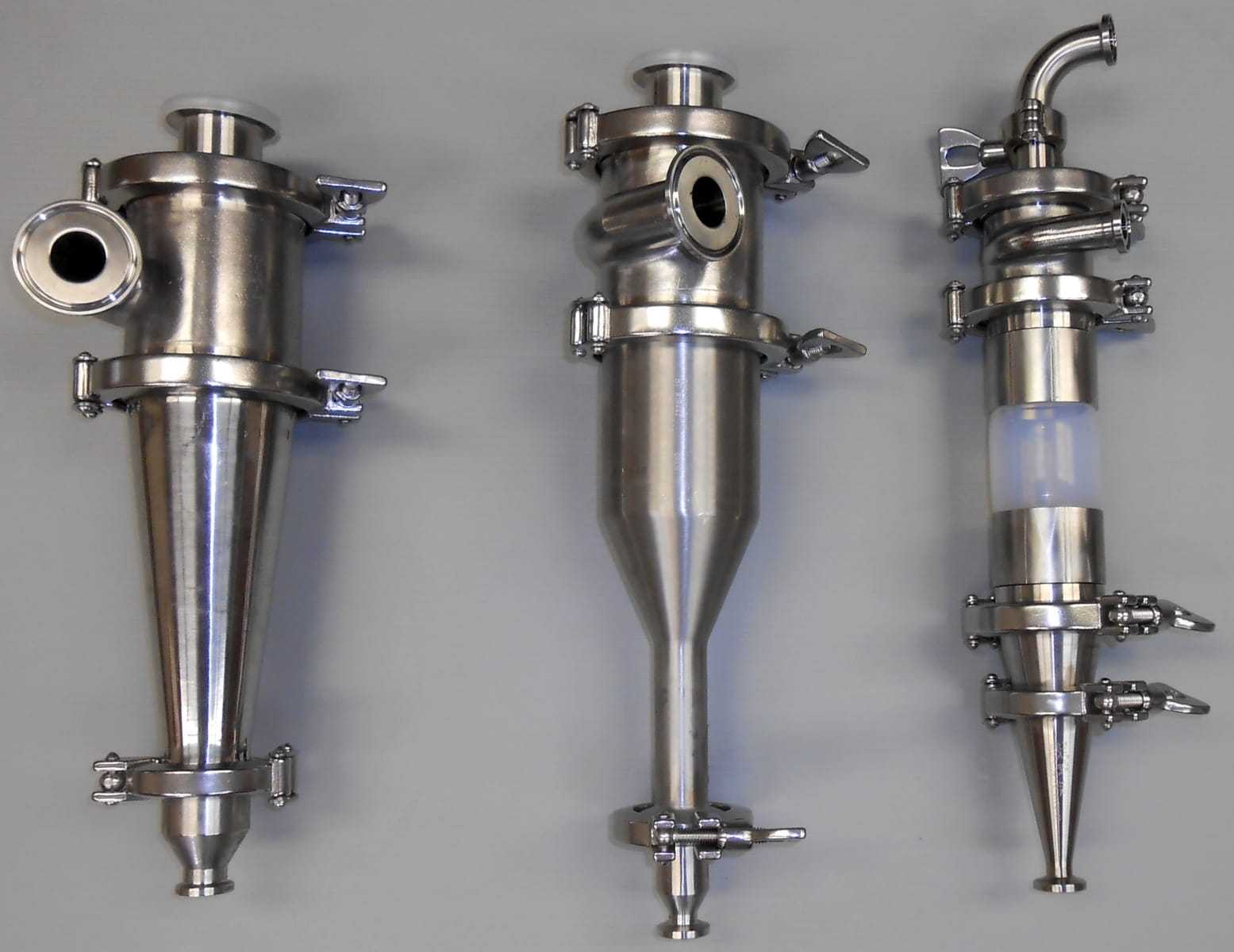

Stainless Steel Models:

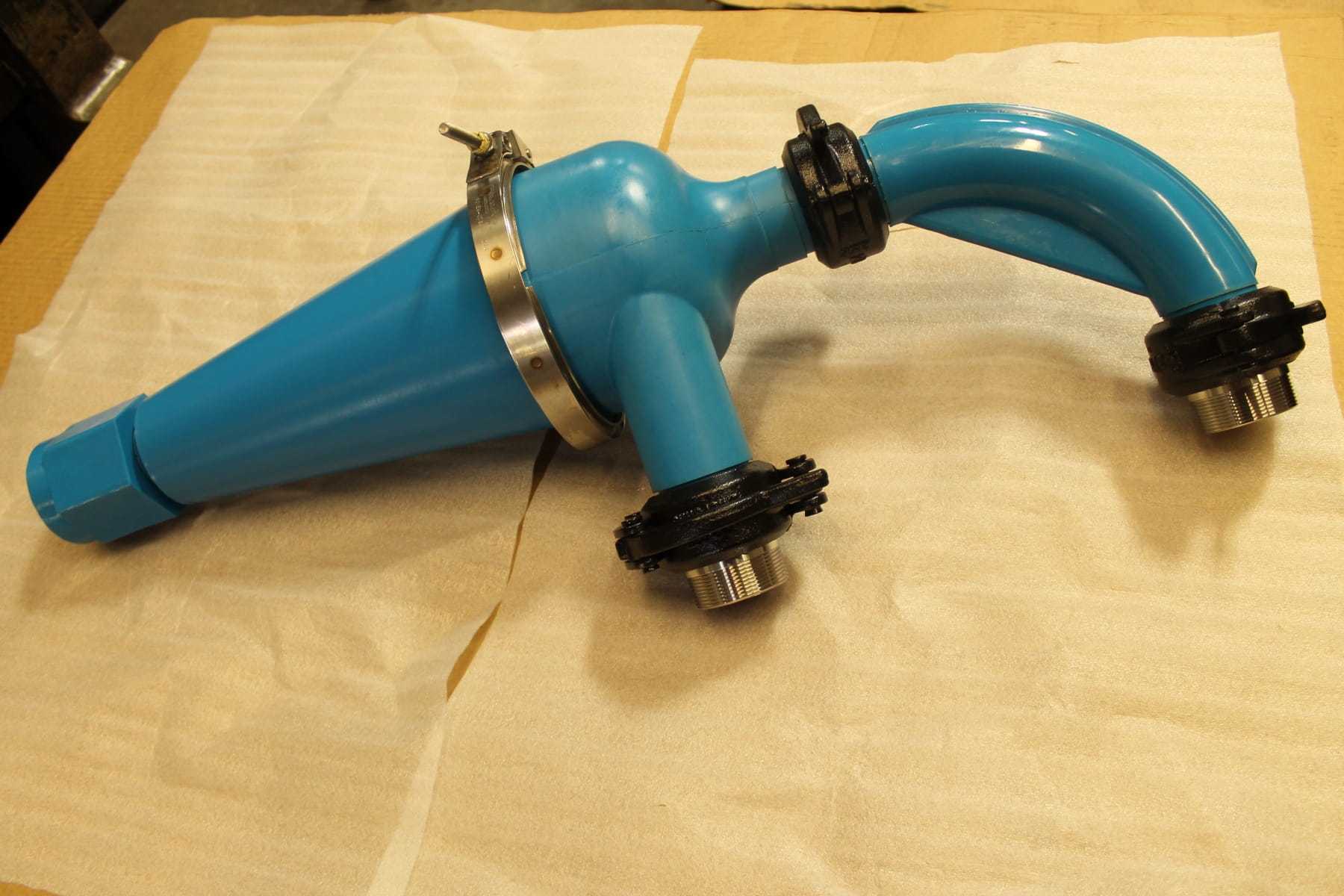

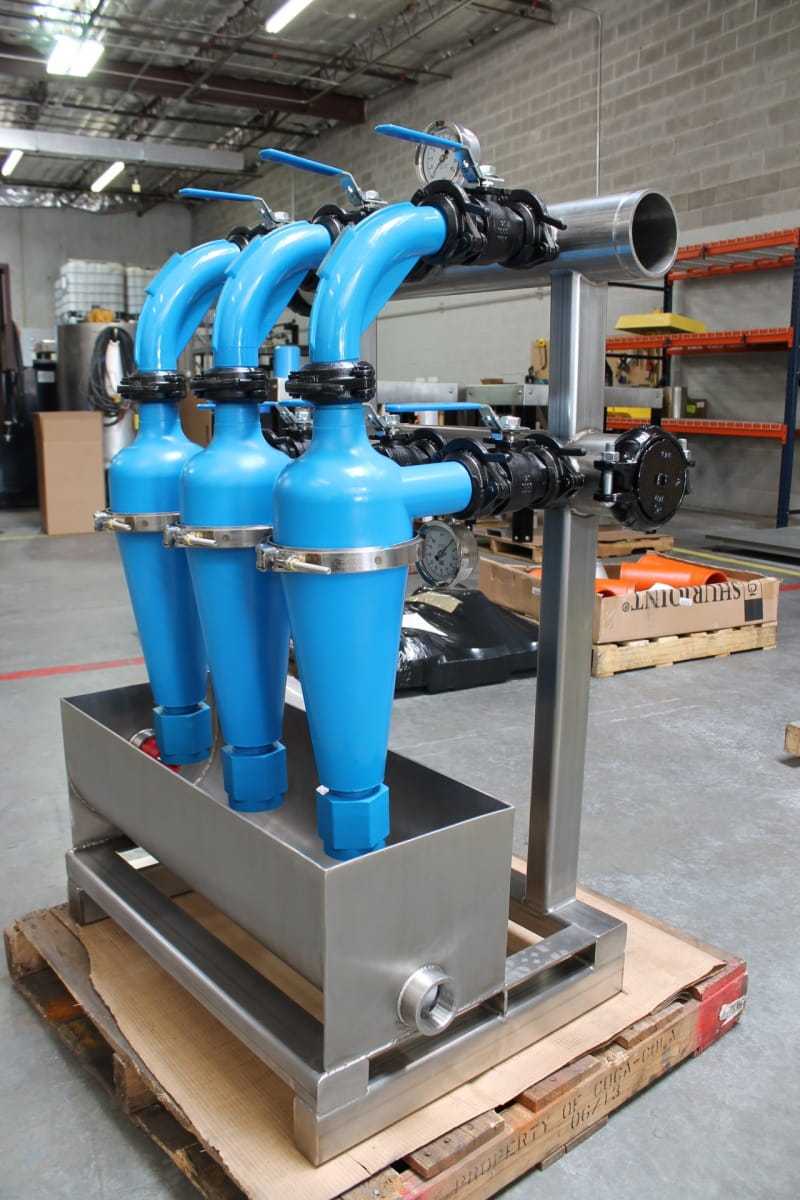

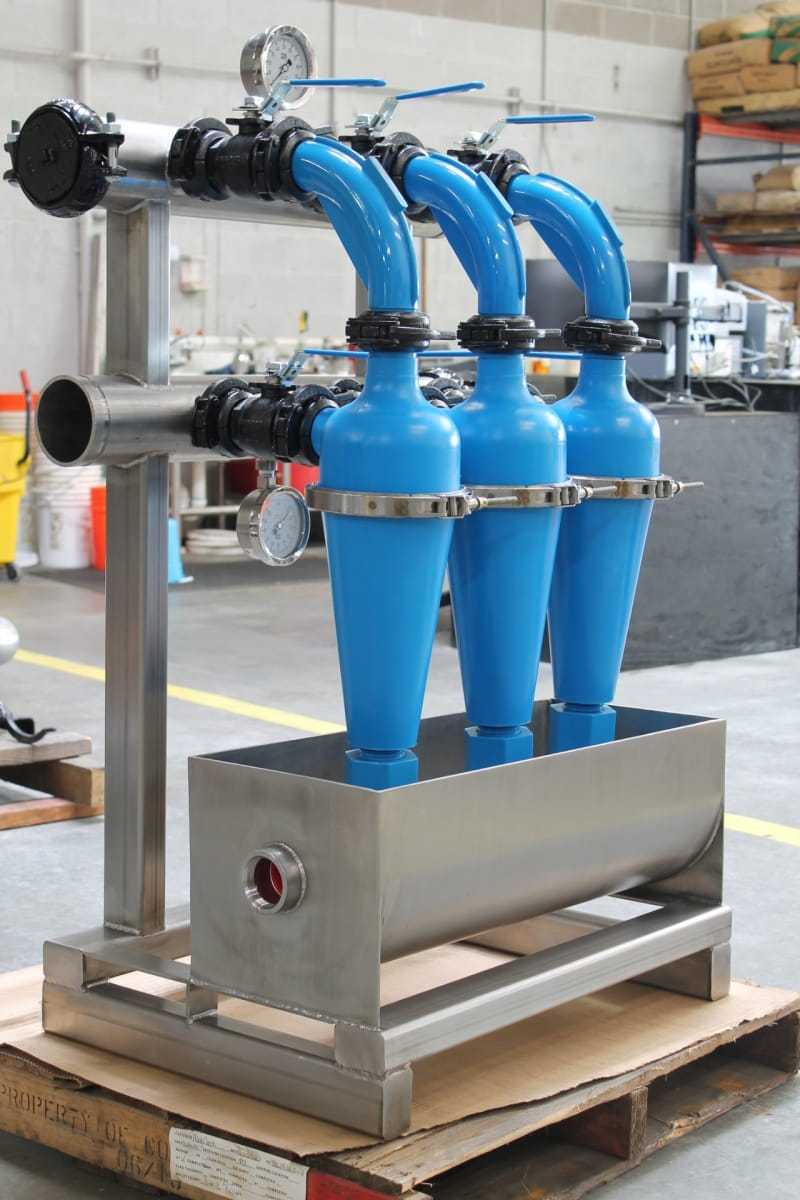

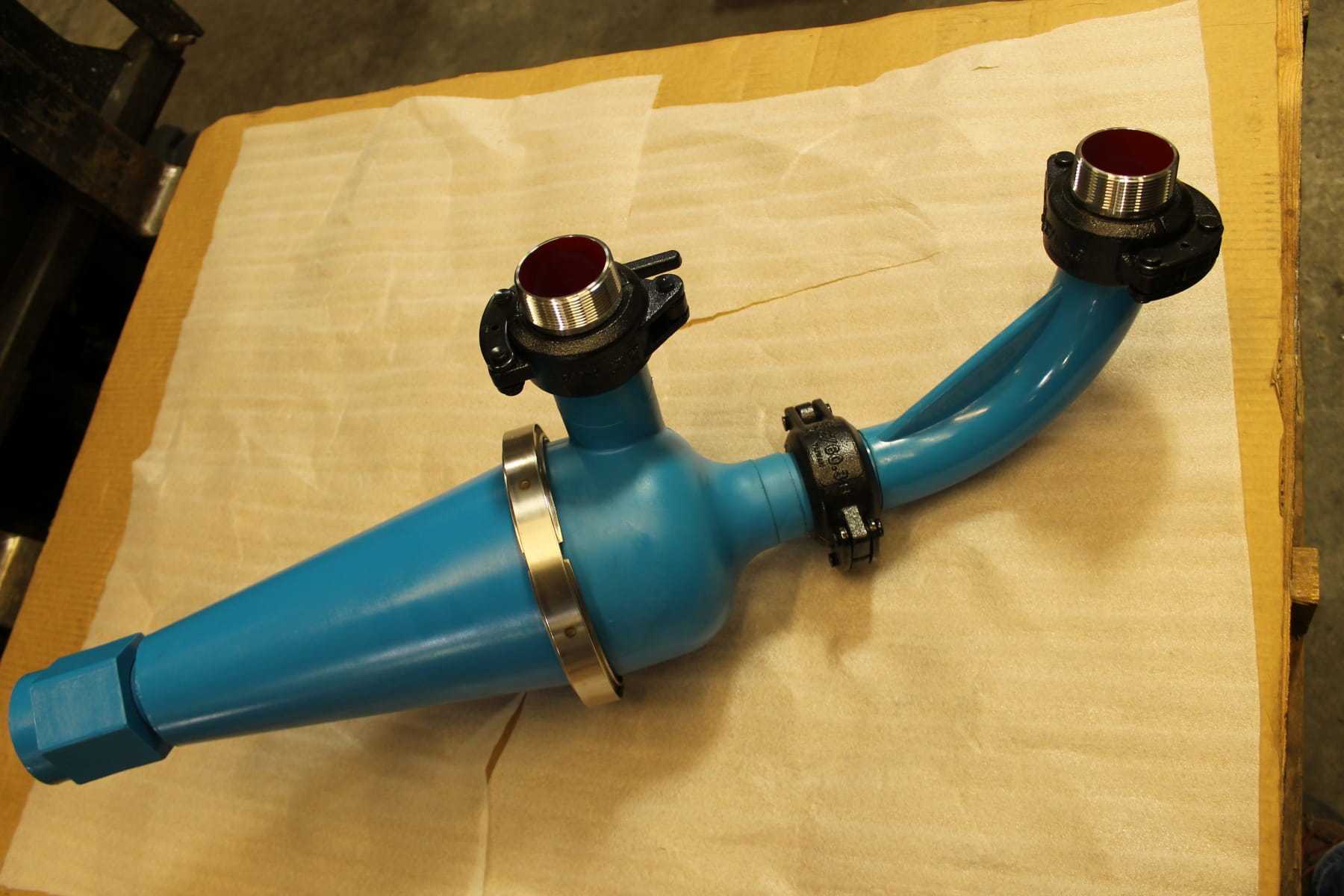

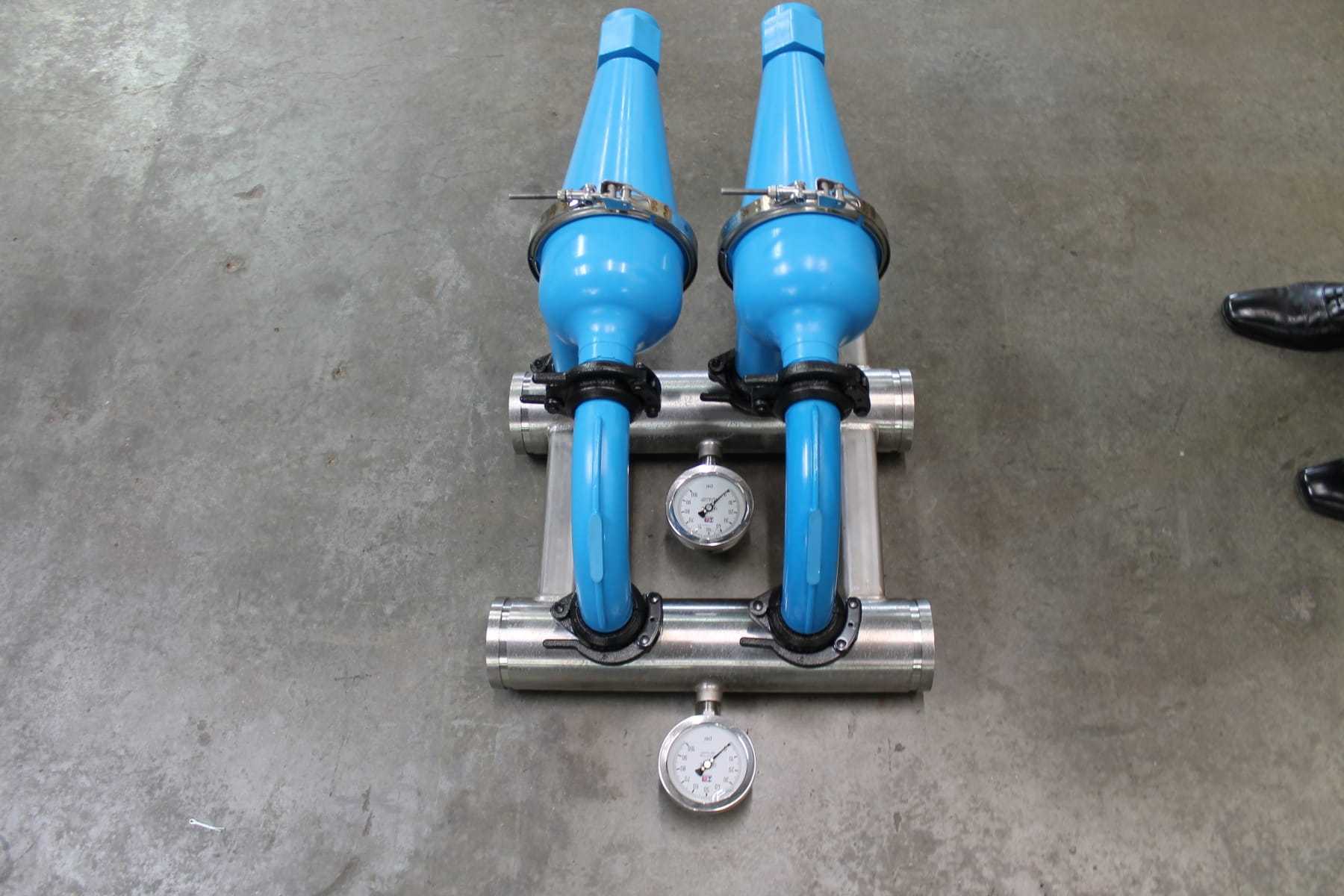

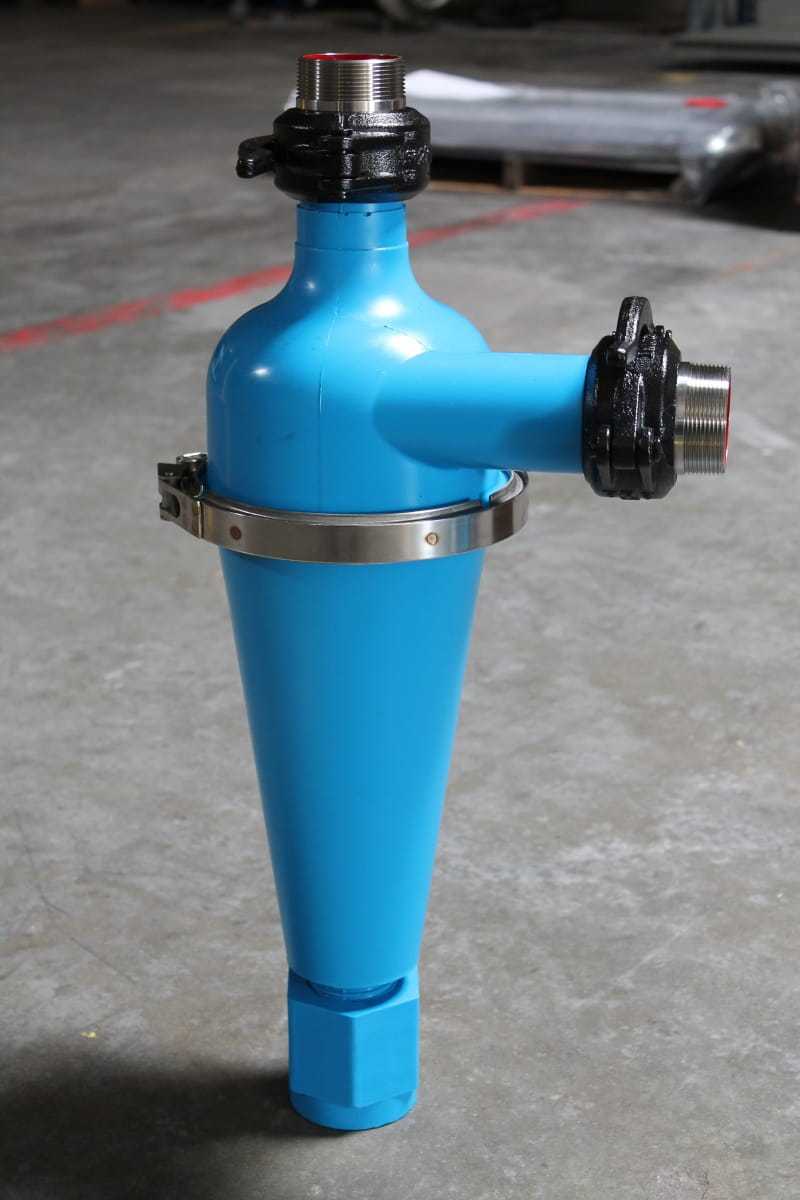

Urethane Models:
