CCC’s Bulk Bag Discharger is a patented bulk bag unloading system engineered to simultaneously discharge and mix bulk dry powders in a single, contained operation. Unlike conventional bulk bag handling equipment that empties a bag into an open hopper, CCC’s system connects directly to the HydroDyne Jet Pump, enabling rapid powder hydration and dispersion without dust exposure, secondary transfer steps, or additional equipment. Compatible with both disposable and non-disposable bulk bags, this compact bulk bag discharge station is built for industrial facilities that require speed, cleanliness, and process integration in one footprint.

Request a Quote

How CCC’s Bulk Bag Discharge System Works

When a bulk bag (also referred to as a super sack, big bag, or FIBC) is lowered into the docking station by forklift, the weight of the bag activates the piercing mechanism, opening the bag automatically. Powder is then drawn through a hermetically sealed suction assembly directly into the HydroDyne Jet Pump feed inlet, where mixing and hydration begin immediately. This sealed bulk bag discharge process eliminates operator contact with the powder, prevents airborne dust, and delivers material from bag to process in one continuous, controlled flow.

The result is a bulk bag mixing system that handles both the unloading and processing stages simultaneously, reducing cycle time and simplifying process line design.

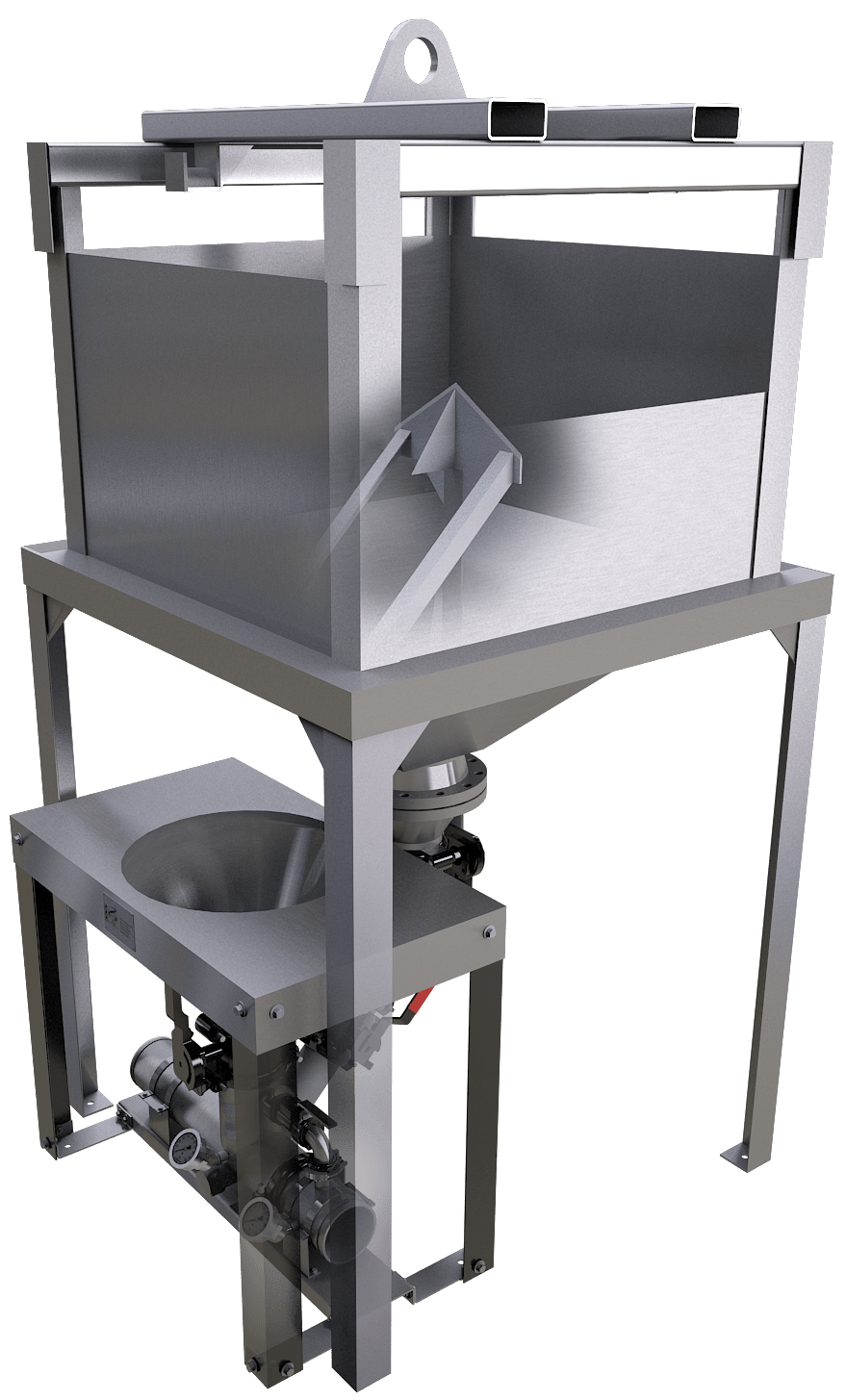

Bulk Bag Handling System Visual Breakdown

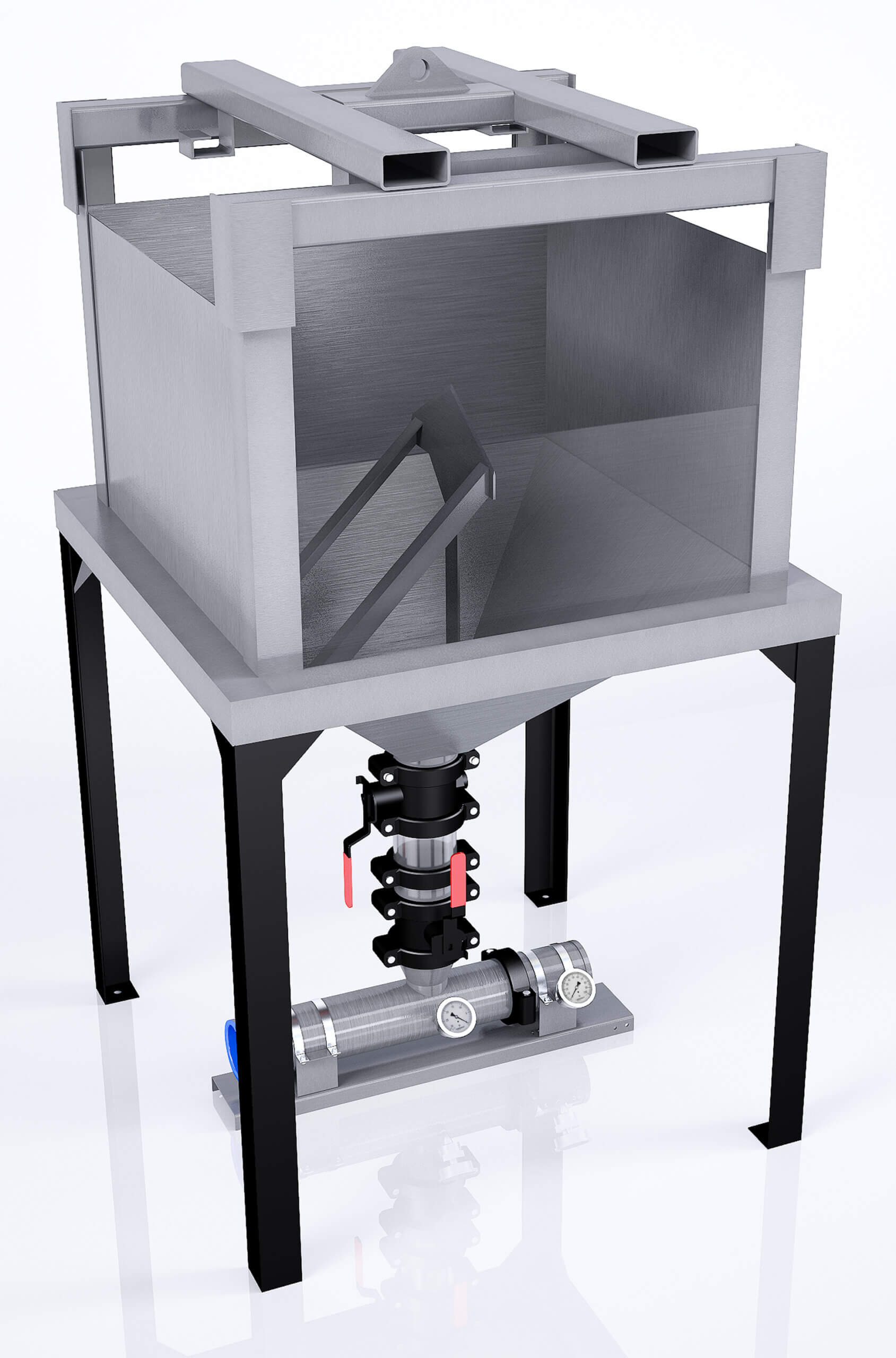

Heavy Duty Bag Slitter for Bulk Bag Handling System



Bulk Bag Discharger Features and Benefits

Dual Performance Delivery

CCC’s bulk bag discharger is not a standalone unloader. By integrating directly with the HydroDyne Jet Pump, the system simultaneously discharges powder and initiates the mixing and hydration process. This dual functionality reduces equipment footprint, eliminates intermediate transfer steps, and simplifies process line design compared to traditional bulk bag handling equipment.

Speed Mixing

The system is engineered for high-throughput applications where rapid powder introduction into a liquid stream is critical. Suction-driven discharge combined with jet pump velocity delivers faster cycle times than gravity-fed bulk bag unloading equipment, making it well suited for continuous production environments.

Rapid Hydration and Dispersion

Powder is introduced directly into the jet pump’s high-velocity liquid stream, enabling immediate wetting, hydration, and dispersion upon entry. This is particularly effective for hydrocolloids, polymers, starches, and other materials that require thorough liquid contact during introduction to prevent agglomeration or fish-eyes.

Dust-Free Bulk Bag Discharge

The hermetically sealed suction assembly keeps powder fully contained from the moment the bag is pierced through the completion of the discharge cycle. This dust-free bulk bag discharge design protects operators, maintains a clean process environment, and makes the system appropriate for food, pharmaceutical, and chemical processing applications with strict containment requirements.

Disposable and Non-Disposable Bulk Bags

The system accommodates both disposable and reusable bulk bags, providing flexibility in sourcing and bag management without requiring equipment modifications between bag types. This makes CCC’s FIBC discharger a practical fit for facilities operating across multiple material suppliers or packaging formats.

Compact Design

CCC’s bulk bag discharge station is designed with a minimal footprint. Vertical loading via forklift keeps the overall system compact while maintaining safe, ergonomic operation, making it practical for facilities where floor space is a constraint.
Request a Quote

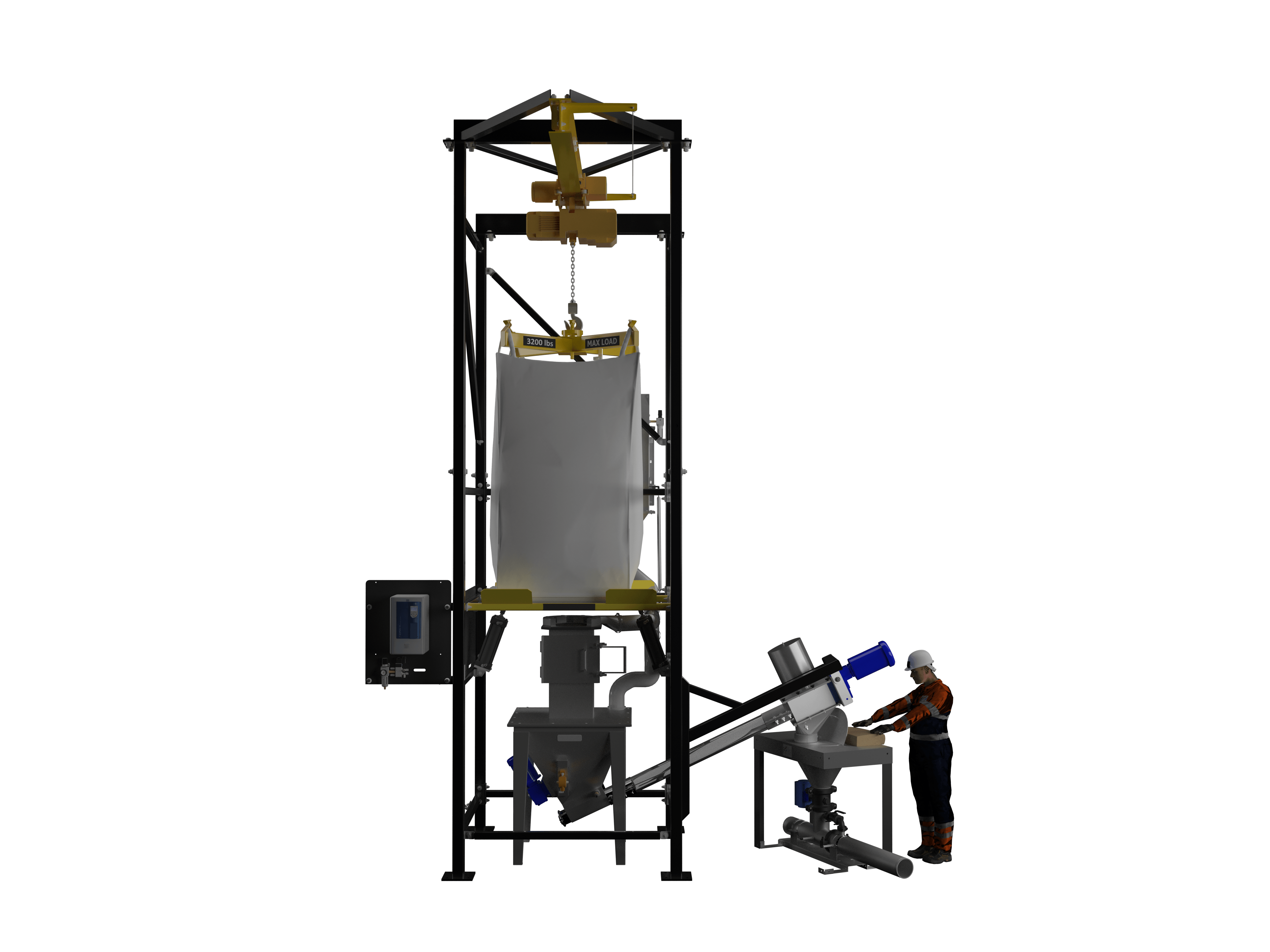

forklift

Bulk Bag Discharger Applications

Similar to the AZ Mixing Eductors, CCC’s bulk bag powder feeding system is used across a range of industries where dry powder must be introduced into a liquid process quickly, cleanly, and with minimal manual handling:

  • Polymer hydration and polymer feed systems for water and wastewater treatment
  • Food and beverage powder processing (starches, hydrocolloids, beverage blends)
  • Chemical blending and industrial liquid mixing
  • Pharmaceutical powder introduction and slurry preparation
  • Agricultural chemical and fertilizer processing
  • Industrial cleaning compound and detergent production

Bulk Bag Discharger Specifications

Specification Details
Product Type Bulk Bag Discharger / Bulk Bag Unloading System
Compatible Bag Types Disposable and non-disposable bulk bags (FIBC / super sacks / big bags)
Loading Method Forklift
Discharge Mechanism Hermetically sealed suction assembly
Discharge Type Dust-free, sealed; no open hopper contact
Bag Activation Gravity-activated piercing; bag weight opens discharge point automatically
Process Integration Direct connection to HydroDyne Jet Pump feed inlet
Output Function Simultaneous powder discharge and liquid mixing / hydration
Available Models C-BBS-45CF-04A, C-BBS-45CF-06A
Patent U.S. Patent No. 8,622,715

Bulk Bag Discharger Model

CCC offers the following bulk bag unloading system configurations. Click the links below to download the corresponding specification sheets:

Frequently Asked Questions About CCC’s Bulk Bag Discharger

What is a bulk bag discharger?
A bulk bag discharger, also called a bulk bag unloader, FIBC discharger, or super sack unloader, is industrial equipment used to empty large flexible bulk containers of dry powder or granular material into a downstream process in a controlled, contained manner. Standard bulk bag dischargers use gravity to empty material into a hopper or receiving vessel. CCC’s system uses a sealed suction mechanism that draws powder directly into the HydroDyne Jet Pump, combining discharge and mixing in a single step.

How is CCC’s bulk bag discharger different from a standard bulk bag unloader?
Most bulk bag unloading equipment empties the bag into an open or semi-enclosed hopper, which then feeds downstream equipment separately. CCC’s discharger eliminates that intermediate step entirely. The bulk bag docks directly above a hermetically sealed suction assembly connected to the HydroDyne Jet Pump. When the bag is lowered and pierced, powder moves from the bag to the pump in one continuous sealed path, beginning the mixing and hydration process immediately. There is no open transfer, no secondary vessel, and no additional conveying equipment required between the bag and the process.

What types of bulk bags are compatible with this system?
CCC’s bulk bag discharge station is compatible with both disposable and non-disposable bulk bags. This includes standard FIBC bags (flexible intermediate bulk containers), super sacks, and big bags across a range of common sizes. Bag activation is gravity-driven, so no manual cutting or operator contact with the powder is required.

Is this system truly dust-free?
Yes. The hermetically sealed suction assembly creates a fully enclosed path from the moment the bulk bag is pierced. Powder never contacts open air during the discharge cycle, which eliminates airborne dust at the point of discharge. This makes CCC’s sealed bulk bag discharge design appropriate for materials with strict containment requirements, including food ingredients, pharmaceutical powders, and industrial chemicals.

What materials can be processed with this bulk bag discharge system?
CCC’s system is designed for dry powder and granular materials that require liquid hydration or dispersion as part of the process. Common materials include polymers, hydrocolloids, starches, beverage blend powders, industrial chemicals, detergents, agricultural chemicals, and pharmaceutical compounds. Because discharge connects directly to the HydroDyne Jet Pump’s liquid stream, materials that are prone to agglomeration or clumping when introduced to liquid are well suited for this bulk bag powder feeding system.

What does the HydroDyne Jet Pump do in this system?
The HydroDyne Jet Pump is the mixing engine that CCC’s bulk bag discharger feeds into. It uses a high-velocity liquid stream to draw powder through the suction assembly and disperse it into the liquid phase at the point of entry. This produces rapid hydration and uniform dispersion without the need for mechanical agitators or additional blending equipment. The bulk bag discharger and HydroDyne Jet Pump function as a single integrated bulk bag mixing system rather than two separate pieces of equipment.

Does loading the bulk bag require a forklift?
Yes. Bulk bags are loaded into the docking station by forklift, which positions the bag above the suction assembly. The weight of the loaded bag activates the piercing mechanism automatically when lowered into position, so no additional tools or manual bag opening is required. This keeps the loading process straightforward and limits operator exposure to the material.

What is the difference between an FIBC discharger and a bulk bag discharger?
The terms refer to the same category of equipment. FIBC stands for Flexible Intermediate Bulk Container, which is the formal industry term for what is commonly called a bulk bag, super sack, or big bag. An FIBC discharger and a bulk bag discharger perform the same function: emptying that container of its contents in a controlled way. CCC’s system is marketed as a bulk bag discharger but is fully compatible with all standard FIBC bag formats.

What industries use CCC’s bulk bag discharger?
CCC’s system is used in any industry where large quantities of dry powder must be introduced into a liquid process cleanly and efficiently. Current applications include water and wastewater treatment (polymer hydration), food and beverage processing, chemical blending, pharmaceutical manufacturing, agricultural chemical processing, and industrial cleaning product production.

Request a Quote

To discuss your bulk bag unloading requirements or request a quote, contact our team using the form below. Our engineers will help identify the right configuration for your material, volume, and process environment.
